CLF OEM LiFePO4 EV بسته باتری لیتیوم 96V 120V 360V 100ah 200Ah بسته باتری ولتاژ بالا برای کامیون خودرو با سرعت پایین
تماس با شخص : Rosa Liu
شماره تلفن : +86 18975107916
واتساپ : +8618975107916
|
اطلاعات تکمیلی |
|||
| مدل باتری: | CLF-R3817 | سلول باتری: | درجه A |
|---|---|---|---|
| نوع باتری: | لیتیوم | مواد آند: | LFP/NCM |
| ولتاژ اسمی:: | 60 ولت | ظرفیت اسمی:: | 100 ساعت / سفارشی |
| جریان تخلیه: | 100A | حداکثر جریان تخلیه مداوم: | 200A |
| چرخه عمر:: | > 6000 (در 80٪ DoD) | اندازه: | 550*375*180mm/سفارشی |
| درجه IP: | IP67 | کاربرد:: | لیفتراک، چرخ دستی های گلف، اتوبوس کم سرعت، وسیله نقلیه بهداشتی و غیره |
| OEM/ODM: | قابل قبول | ||
توضیحات محصول

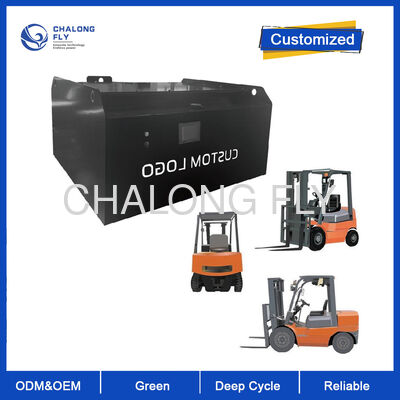

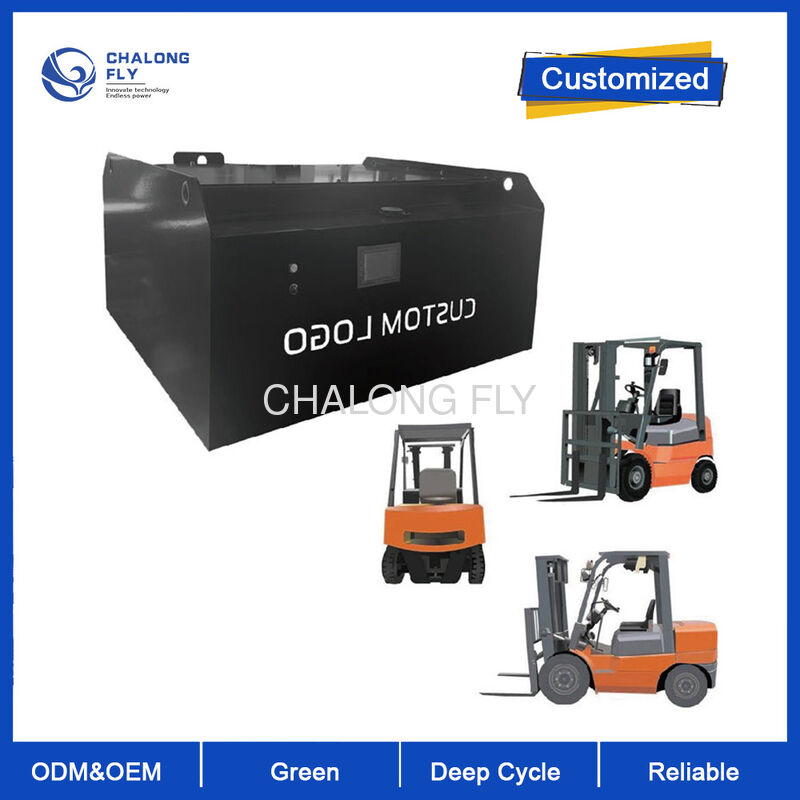

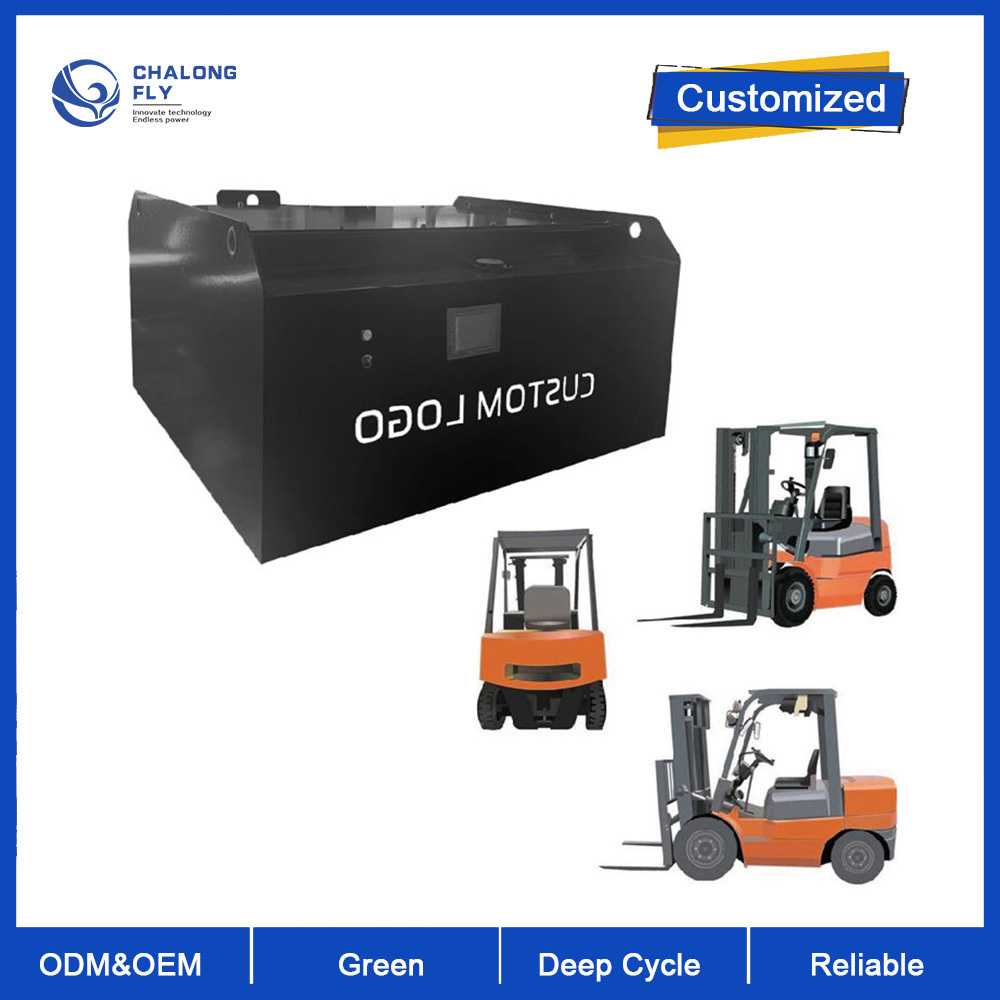

96V 600Ah LiFePO4 Forklift Battery is a high-capacity and high-power energy solution designed for heavy-duty electric forklifts, large tonnage stackers and industrial handling equipment. Adopting premium grade A LiFePO4 cells and upgraded smart BMS system, it features large capacity, steady high-current output, long cycle lifespan, maintenance-free design and excellent temperature resistance. It can fully replace traditional large capacity lead-acid batteries, reduce frequent charging troubles for heavy-duty equipment, improve working efficiency and cut long-term operating expenses. Custom OEM and ODM service are available to match different equipment sizes and working conditions.
Built with high-density grade A LiFePO4 cells, 600Ah large capacity supports 12–16 hours continuous working after full charge. Max 600A steady discharge current provides stable power output without obvious voltage drop, perfectly matching large tonnage handling and long-time heavy working scenarios.
| Item | Specification |
|---|---|
| Rated Voltage | 96V DC |
| Rated Capacity | 600Ah (0.2C, 25℃) |
| Battery Type | LiFePO4 Lithium Iron Phosphate |
| Cycle Life | ≥5500 Cycles @ 80% DOD; ≥7500 Cycles @ 50% DOD |
| Charging Voltage | 115.2V DC |
| Standard Charging Current | 60A–100A |
| Optional Fast Charging Current | 120A |
| Discharge Cut-off Voltage | 81.6V DC |
| Max Continuous Discharge Current | 600A |
| Peak Discharge Current | 800A (10s) |
| Built-in System | Smart BMS with overcharge, overdischarge, overcurrent, short circuit, over temperature, low temperature and cell balance protection |
| Monthly Self-discharge Rate | ≤2.5% (25℃ no load) |
| Charging Temperature | 0℃ ~ 60℃ |
| Discharging Temperature | -20℃ ~ 65℃ |
| Storage Temperature | -20℃ ~ 45℃ (Recommended 10℃~25℃, 50% SOC) |
| Dimension (L*W*H) | 850mm*600mm*320mm (Customizable) |
| Net Weight | 280kg |
| Connector Type | High-current Anderson / DIN / Custom Interface |
| Waterproof Level | IP65 Standard, IP67 Optional |
| Applicable Equipment | Heavy-duty forklift, large stacker, industrial logistics handling equipment |
| Certifications | CE, MSDS, UN38.3, IEC62133, RoHS |
| Warranty | 4 Years or 2500 Cycles (whichever comes first) |
| Custom Service | Size, power, connector, shell color, logo, communication protocol customization |
