کابینت ESS 258KWH 289KWH 385KWH LiFePO4 کابینت ذخیره انرژی برای صنعت و تجارت کابینت ذخیره انرژی
تماس با شخص : Rosa Liu
شماره تلفن : +86 18975107916
واتساپ : +8618975107916
| مقدار حداقل تعداد سفارش : | 1 واحد | قیمت : | قابل مذاکره |
|---|---|---|---|
| جزئیات بسته بندی : | مورد چوبی و پرونده کارتن | زمان تحویل : | 7-15 روز کاری |
| شرایط پرداخت : | T/T | قابلیت ارائه : | 10000 واحد در ماه |
| محل منبع: | هونان ، چین | نام تجاری: | Chalong Fly |
|---|---|---|---|
| گواهی: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc | شماره مدل: | CLFLE195 |
|
اطلاعات تکمیلی |
|||
| شماره مدل: | باتری خورشیدی 48V 100AH 200AH | OEM/ODM: | قابل قبول |
|---|---|---|---|
| سفارشی: | بله | ||
| برجسته کردن: | 80Ah Large Capacity Lithium Battery,IP67 Protection Marine Lithium Battery,Parallel Operation Industrial Energy Storage Battery,IP67 Protection Marine Lithium Battery,Parallel Operation Industrial Energy Storage Battery |
||
توضیحات محصول

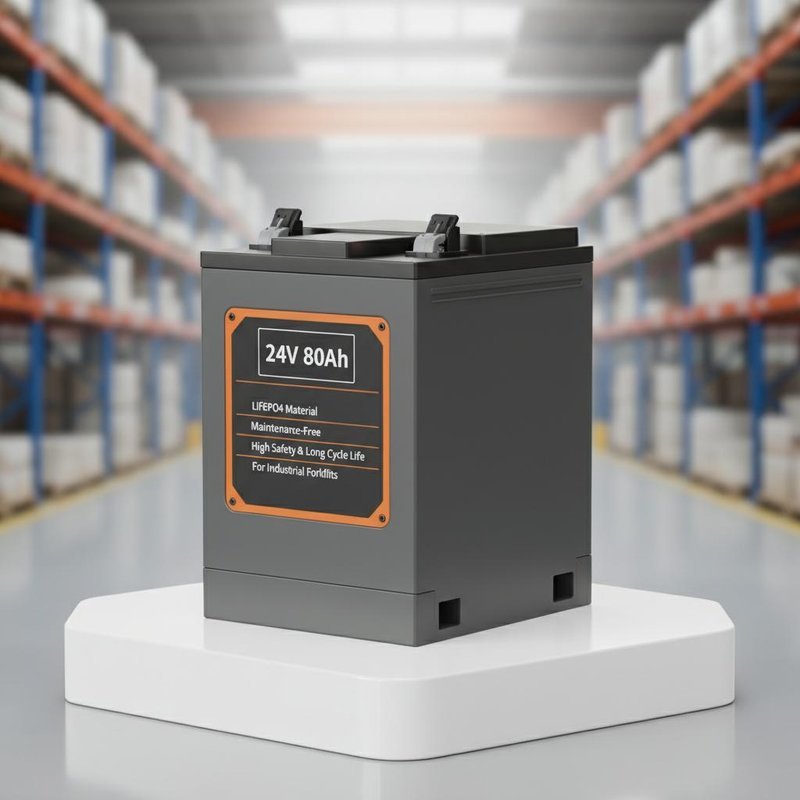

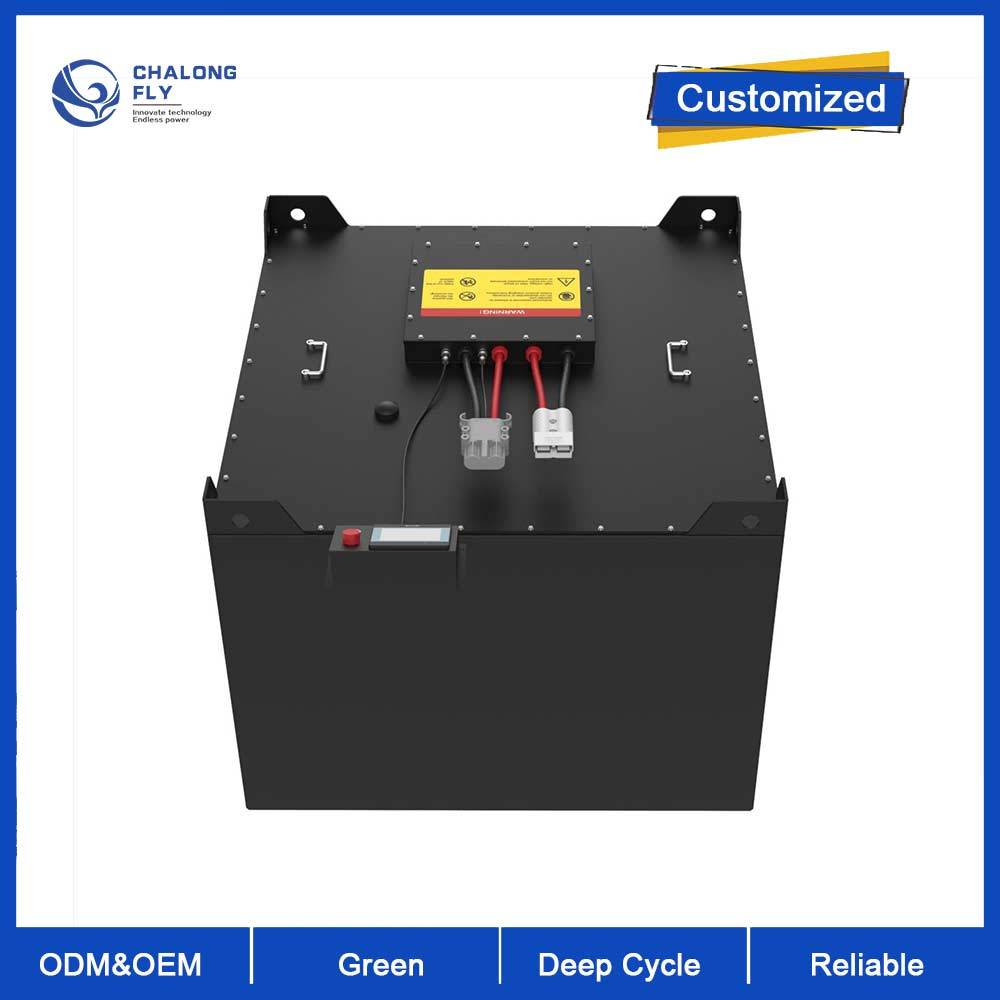

The 24V 80Ah forklift lithium battery is specially designed for industrial forklifts, adopting high-quality LiFePO4 battery cells. It features fast charging, long cycle life, maintenance-free operation, and excellent safety performance, which can completely replace traditional lead-acid batteries. It effectively solves the pain points of lead-acid batteries such as heavy weight, frequent maintenance, short service life and environmental pollution, and provides stable and efficient power support for forklift operations in warehouses, factories, logistics parks and other scenarios. It conforms to international certification standards and ensures safe and reliable operation under various working conditions.
| Parameter Name | Specification |
|---|---|
| Nominal Voltage | 24V |
| Nominal Capacity | 80Ah |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | ≥3000 cycles (at 100% DOD, 25℃) |
| Charging Voltage | 28.4V - 29.2V (CC/CV Charging Mode) |
| Charging Time | 1-2 hours (0-100% capacity) |
| Continuous Discharge Current | 200A |
| Peak Discharge Current | 250A (7.5s ±2.5s) |
| Self-Discharge Rate | <3% per month (25℃) |
| Operating Temperature Range | Charging: 0℃ - 50℃; Discharging: -20℃ - 55℃ |
| Storage Temperature Range | 0℃ - 40℃ |
| Protection Level | IP65 |
| Battery Weight | 21kg (46lbs) |
| Dimensions (L*W*H) | 290*240*243mm |
| Certifications | CE, UN38.3, UL, IEC, ISO9001 |
| Warranty Period | 3 years or 3000 cycles (whichever comes first) |
A1: Yes, it can be directly replaced without modifying the forklift's power system. It has the same installation size and interface as the corresponding lead-acid battery, which is convenient and quick to replace, and can perfectly match most 24V forklift models on the market. It is a direct replacement for lead-acid batteries and can be put into use immediately after installation.
A2: Compared with lead-acid batteries, it has four core advantages: first, longer service life, with a cycle life of more than 3000 times, which is 2-3 times that of lead-acid batteries; second, maintenance-free, no need to add water, adjust electrolyte or do other daily maintenance, saving labor costs; third, fast charging, which can be fully charged in 1-2 hours, greatly reducing the waiting time for charging and improving work efficiency; fourth, high safety, adopting LiFePO4 material, which has no risk of explosion or fire even in case of puncture, extrusion or short circuit, and is more environmentally friendly without heavy metal pollution.
A3: Under normal use (1 cycle of charging and discharging per day, 80% discharge depth), the service life can reach 8-10 years, which is far longer than that of lead-acid batteries (3-4 years). The battery still maintains more than 70% of the nominal capacity after 3000 cycles, which can fully meet the long-term use needs of industrial scenarios.
A4: Yes, it can. The battery has excellent low-temperature performance, and the discharge capacity can still reach more than 80% of the nominal capacity at -20℃, which is much better than lead-acid batteries (which lose 30-40% capacity below 0℃). It is suitable for low-temperature working environments such as cold storage and northern cold areas, and can ensure stable power output without affecting forklift operation.
A5: It is recommended to use a special CC/CV (constant current constant voltage) lithium battery charger with a charging voltage of 28.4V-29.2V. Do not use a lead-acid battery charger, which will damage the battery and affect its service life. The charger with matching specifications can ensure safe and efficient charging and extend the battery life.
A6: When storing the battery for a long time (more than 3 months), it is recommended to keep the battery capacity at 40%-60%, store it in a dry, ventilated and cool environment (0℃-40℃), avoid direct sunlight and high-temperature and high-humidity environments, and check the battery voltage every 3 months. If the voltage is lower than 24V, supplement charging in time to prevent over-discharge and damage the battery.
