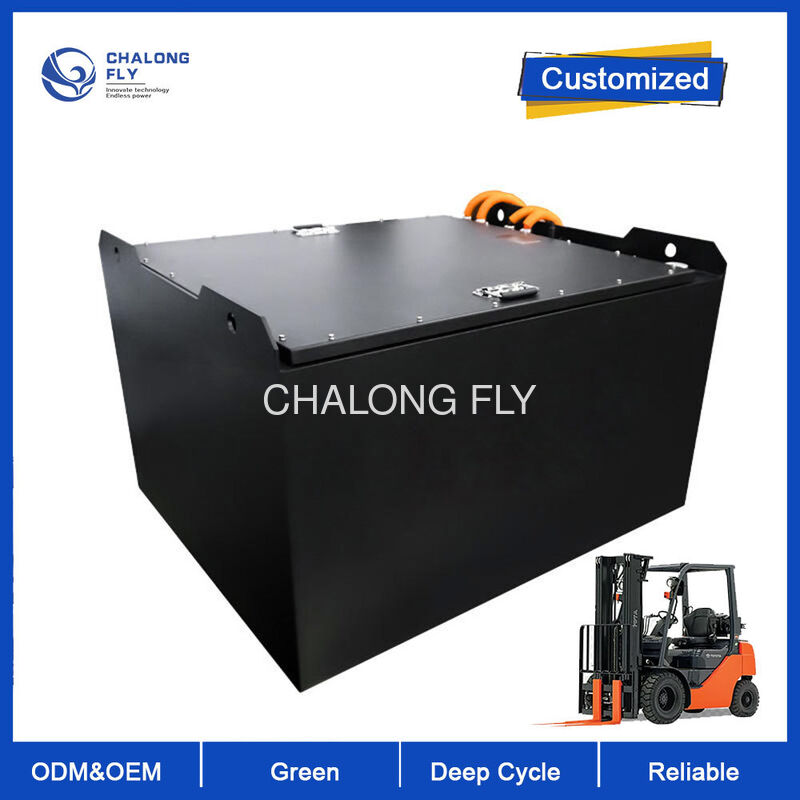

Electric Forklift LiFePO4 Battery - 48V 200Ah/500Ah/600Ah/700Ah For Forklift & Pallet Truck

مقدار حداقل تعداد سفارش : 10-1000 واحد قیمت : قابل مذاکره
جزئیات بسته بندی : مورد چوبی و پرونده کارتن زمان تحویل : 7-15 روز کاری
شرایط پرداخت : T/T قابلیت ارائه : 1000 واحد در ماه
محل منبع: هونان ، چین نام تجاری: CLTF
گواهی: CE/IEC/RoHS/UN38.3/FCC شماره مدل: CLFC-110

اطلاعات تکمیلی

ولتاژ اسمی: 12V/24V/36V/48V/60V/72V/96V ظرفیت اسمی: 80AH/150AH/200AH/300AH/400AH/500AH/600AH
نوع باتری: باتری لیتیوم LifePo4 نوع ذخیره سازی: -20 درجه سانتیگراد -60 درجه سانتیگراد
ماده اندک: NCM/LFP کاربرد: صندلی چرخدار برقی، سیستم‌های برق، سیستم‌های ذخیره‌سازی انرژی خورشیدی، انرژی خورشیدی/باد/بالابر/قایق/
گواهی: CE/ROHS/MSDS/UN38.3 OEM/ODM: موجود است
چرخه زندگی: > 3000 بار

توضیحات محصول

Replace traditional lead-acid batteries, solve the pain points of short service life, long charging time and high maintenance cost. Help enterprises reduce operating costs by 30% and improve work efficiency by 50%.

Detailed Specification Parameters
Category Item Specification (48V 200Ah Forklift Battery)
Basic Information Product Model Customizable (Customer Logo Printable)
Cell Type Automotive Grade LiFePO4 Cell (Grade A)
Installation Method Horizontal / Vertical (Fit Forklift Battery Compartment)
Electrical Parameters Nominal Voltage 48V
Nominal Capacity 200Ah (10HR)
Rated Continuous Discharge Current 50A
Max Instantaneous Discharge Current 200A (≤5s)
Internal Resistance ≤50mΩ
Charging Parameters Charging Voltage 58.4V
Fast Charging Time 2h (0-90%)
Normal Charging Time 8h (0-100%)
Environmental Parameters Operating Temperature -20℃ ~ 60℃
Storage Temperature -40℃ ~ 70℃
Protection Grade IP67
Physical Parameters Shell Material Thickened Cold-Rolled Steel (1.2mm Thickness)
Terminal Tinned Pure Copper (M16/M20 Optional)
Product Size L520*W280*H360mm (Customizable)
Net Weight ≈65kg
Other Parameters Cycle Life ≥4000 Times (100%DOD)
BMS Function Overcharge/Overdischarge/Short Circuit/Overcurrent/High&Low Temp Protection, Cell Balancing

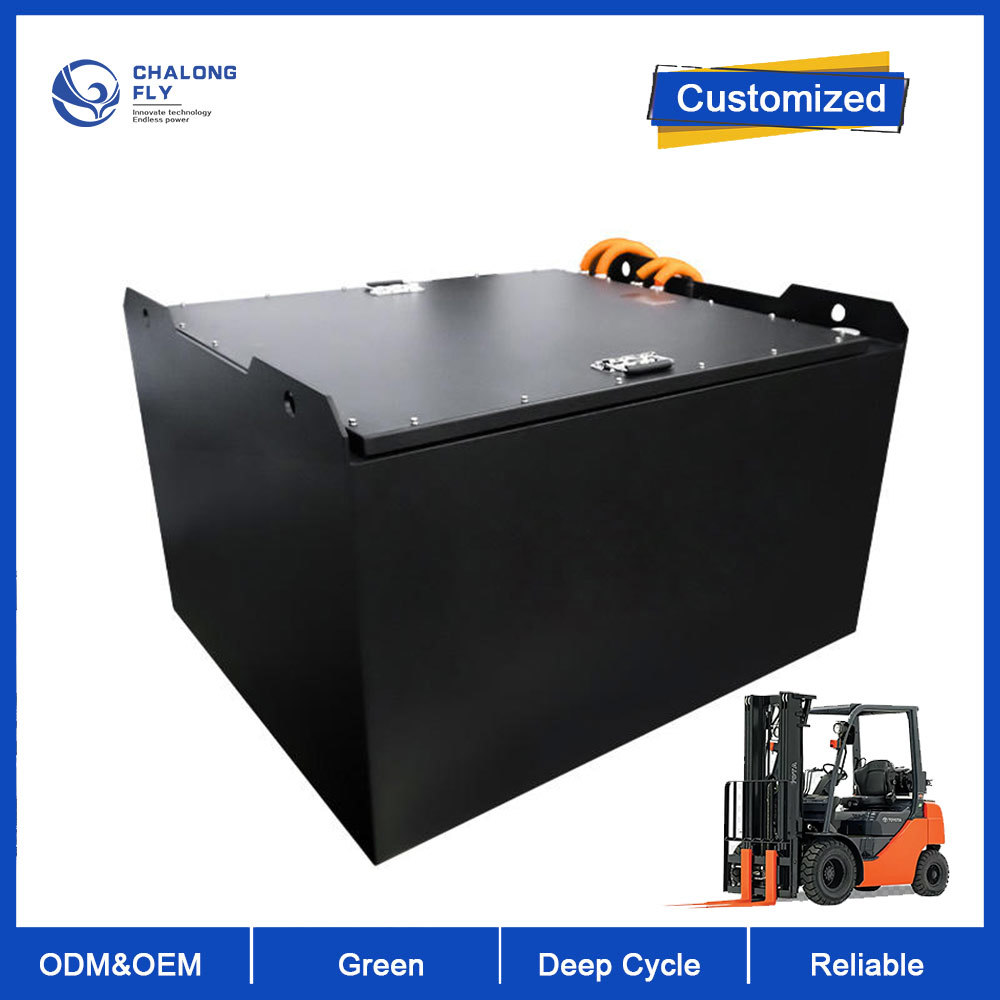

Electric Forklift LiFePO4 Battery - 48V 200Ah/500Ah/600Ah/700Ah For Forklift & Pallet Truck 0
Electric Forklift LiFePO4 Battery - 48V 200Ah/500Ah/600Ah/700Ah For Forklift & Pallet Truck 1
Product Core Advantages
1. High Capacity & Stable Discharge

48V nominal voltage, 200Ah large capacity, 50A rated continuous discharge current, stable discharge platform without obvious voltage drop. It can support 8-10 hours of continuous full-load operation of electric forklifts, perfectly matching the daily operation needs of warehouses and factories.

2. Fast Charging & Energy Saving

Support constant current and constant voltage fast charging technology, it only takes 2 hours to charge from 0% to 90%, and 8 hours to fully charge. It can be charged during the lunch break or shift gap, which greatly shortens the charging time and improves the utilization rate of the forklift.

3. Ultra-Long Service Life & Cost Saving

Adopt automotive-grade Grade A LiFePO4 cells, which have the characteristics of high safety and long cycle life. The charge-discharge cycle life is ≥4000 times (100%DOD), and the actual service life can reach 5-8 years, which is 3-4 times that of traditional lead-acid batteries, greatly reducing the cost of battery replacement and procurement.

Frequently Asked Questions
Q1: Is this 48V 200Ah battery compatible with my existing forklift? Do I need to modify the forklift?

A1: It is compatible with most mainstream electric forklifts (including domestic and imported brands). The standard size and interface are consistent with industrial forklift battery specifications. No modification to the forklift is required in most cases. If your forklift has special specifications, we can provide free customization of battery size and interface to ensure perfect adaptation.

Q2: What is the actual service life of the battery? How to ensure the cycle life of ≥4000 times?

A2: Under normal use (following the usage guidelines), the actual service life can reach 5-8 years. We adopt Grade A automotive LiFePO4 cells, match industrial-grade intelligent BMS management system, and go through 7 strict inspection procedures before leaving the factory. The cycle life of ≥4000 times (100% DOD) is tested and verified by third-party authoritative institutions.

Q3: What is the difference between fast charging and normal charging? Will fast charging damage the battery?

A3: Fast charging takes 2 hours to charge 0-90% (suitable for shift gaps to make up for power quickly), and normal charging takes 8 hours to charge 0-100% (suitable for charging during non-working periods such as nights). The battery supports industrial-grade constant current and constant voltage fast charging, and the built-in BMS will automatically adjust the charging current and voltage to avoid overcharging and overheating, so fast charging will not damage the battery or affect its service life.

Q4: Can the battery be used normally in extremely cold or high-temperature environments? What is the protection measure?

A4: It can be used normally in the environment of -20℃~60℃. For extremely cold areas (below -20℃), we can customize the low-temperature resistant version of the battery (with low-temperature protection module) to ensure stable discharge. The battery has IP67 industrial-grade protection, thickened cold-rolled steel shell and three-proof coated BMS, which can resist high temperature, cold, humidity and dust, and adapt to various complex workshop environments.
